Technical data.

Model overview

Technical data overview.

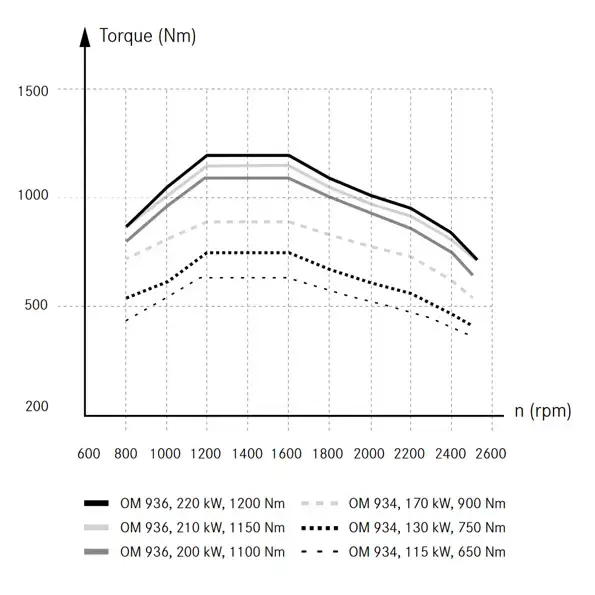

Performance.

Type U 219 U 319 U 323* U 327* U 423 U 427 U 430 U 435 U 527 U 530 U 535
Engine OM 934 OM 934 OM 934 OM 936 OM 934 OM 936 OM 936 OM 936 OM 936 OM 936 OM 936
Max. Power according to DIN (kW) 140 140 170 200 170 200 220 260 200 220 260
Max. Power (hp) 190 190 231 272 231 272 299 354 272 299 354
Cylinder 4 4 4 6 4 6 6 6 6 6 6
Max. Torque (Nm) 750 750 900 1,100 900 1,100 1,200 1,380 1,100 1,200 1,380
Displacement (cm³) 5,132 5,132 5,132 7,698 5,132 7,698 7,698 7,698 7,698 7,698 7,698

Dimensions.

Type U 219 U 319 U 323* U 327* U 423 U 427 U 430 U 435 U 527 U 530 U 535
Wheelbases (mm)** 2,800 3,000 3,000/3,150/3,600 3,150/3,600 3,000/3,150/3,600 3,150/3,600 3,150/3,600 3,150/3,600 3,350/3,900 3,350/3,900 3,350/3,900
Vehicle height (mm) 2,880 2,870 2,925 2,925 2,925 2,925 2,925 2,925 2,920 2,920 2,920
Vehicle width (mm) 2,200 2,200 2,200 2,200 2,200 2,200 2,200 2,200 2,300 2,300 2,300
Vehicle length (mm) 4,800 4,980 4,980/5,130/5,575 5,130/5,575 4,980/5,130/5,575 5,130/5,575 5,130/5,575 5,130/5,575 5,327/6,246 5,327/6,246 5,327/6,246
Front-end centre of axle (mm) 1,065 1,065 1,060 1,060 1,060 1,060 1,060 1,060 1,060 1,060 1,060
Turning circle (m) 12.6 13.7 13.7/14.3/16.5 14.3/16.5 13.7/14.3/16.5 14.3/16.5 14.3/16.5 14.3/16.5 15.1/16.9 15.1/16.9 15.1/16.9

Weights.

Type U 219 U 319 U 323* U 327* U 423 U 427 U 430 U 435 U 527 U 530 U 535
Max. Pressure Rating Total weight (t)*** 10.0 11.0 13.8/14.0 14.0 13.8/14.0 14.0 14.0 14.0 16.5 16.5 16.5
Max. Weight on FA (t) 5.2 5.5 6.9/7.0 7.0 6.9/7.0 7.0 7.0 7.0 7.5 7.5 7.5
Max. Weight on RA (t) 5.5 6.0 7.8/8.0 8.0 7.8/8.0 8.0 8.0 8.0 9.5 9.5 9.5

Tyres.

Type U 219 U 319 U 323/U 327* U 423 - U 435 U 527 - U 535
Standard tyres (tyres/rims) 295/60 R22.5 315/80 R22.5 315/80 R22.5 315/80 R22.5 385/65 R22.5
Smallest tyres (tyres/rims) 295/60 R22.5 295/60 R22.5 315/80 R22.5 315/80 R22.5 365/85 R20
Largest tyres (tyres/rims) 425/75 R20 425/75 R20 445/70 R24 445/70 R24 495/70 R24

* Special model
** Other wheelbases on request
*** With corresponding optional equipment

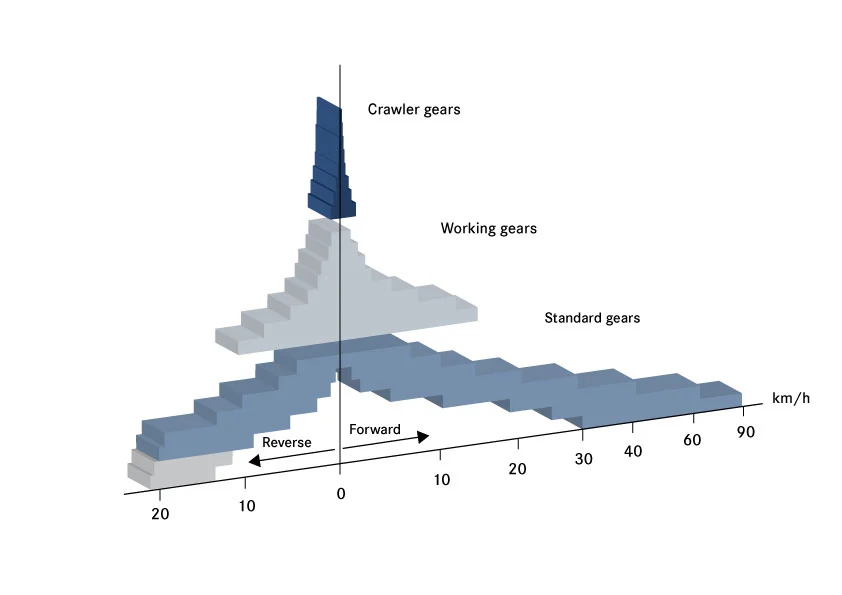

Driving speeds.

Basic ranges.

Model U 219 U 219 U 319 U 319 U 423 - U 430 U 423 - U 430 U 435 U 435 U 527 - U 530 U 527 - U 530 U 535 U 535
Direction Forward Reverse Forward Reverse Forward Reverse Forward Reverse Forward Reverse Forward Reverse
Basic range 1 5.9 3.9 7.1 4.7 7.2 4.8 7.2 4.7 7.1 4.6 7.0 4.6
Basic range 2 8.6 5.6 10.2 6.7 10.5 6.9 10.4 6.8 10.2 6.7 10.1 6.7
Basic range 3 13 8.5 15.5 10.2 15.9 10.4 15.8 10.4 15.4 10.1 15.4 10.1
Basic range 4 17.7 11.6 21.1 13.8 21.6 14.2 21.4 14.1 21.0 13.8 20.9 13.7
Basic range 5 26 17.1 31.0 20.4 31.7 20.8 31.7 20.8 30.9 20.3 30.9 20.3
Basic range 6 37.5 24.6 44.7 29.4 45.7 30.0 45.7 30.0 44.6 29.3 44.6 29.3
Basic range 7 56.8 - 67.8 - 69.4 45.6** 69.4 45.6** 67.6 - 67.6 -
Basic range 8 77,3 - 92,1* - 94,3* 61,9** 94.3* 61.9** 91,9* - 91.9* -

Working gears.

Model U 219 U 219 U 319 U 319 U 423 - U 430 U 423 - U 430 U 435 U 435 U 527 - U 530 U 527 - U 530 U 535 U 535
Direction Forward Reverse Forward Reverse Forward Reverse Forward Reverse Forward Reverse Forward Reverse
Working gears (special equipment) 1 1.03 0.68 1.23 0.81 1.26 0.83 1.25 0.82 1.23 0.81 1.22 0.80
Working gears (special equipment) 2 1.49 0.98 1.77 1.17 1.82 1.19 1.81 1.19 1.77 1.16 1.76 1.16
Working gears (special equipment) 3 2.26 1.48 2.69 1.77 2.75 1.81 2.74 1.80 2.68 1.76 2.67 1.75
Working gears (special equipment) 4 3.07 2.02 3.66 2.4 3.74 2.46 3.72 2.45 3.65 2.4 3.63 2.38
Working gears (special equipment) 5 4.51 2.69 5.38 3.54 5.51 3.62 5.51 3.62 5.37 3.53 5.37 3.53
Working gears (special equipment) 6 6.51 4.28 7.76 5.1 7.95 5.22 7.95 5.22 7.74 5.09 7.74 5.09
Working gears (special equipment) 7 9.87 6.49 11.7 7.73 12.0 7.92 12.05 7.92 11.7 7.71 11.74 7.71
Working gears (special equipment) 8 13.4 8.82 16.0 10.5 16.3 10.7 16.38 10.76 15.9 10.4 15.96 10.48

Crawler gears.

Model U 219 U 219 U 319 U 319 U 423 - U 430 U 423 - U 430 U 435 U 435 U 527 - U 530 U 527 - U 530 U 535 U 535
Direction Forward Reverse Forward Reverse Forward Reverse Forward Reverse Forward Reverse Forward Reverse
Crawler gears (special equipment) 1 0.11 0.07 0.13 0.08 0.13 0.09 0.13 0.08 0.13 0.08 0.13 0.08
Crawler gears (special equipment) 2 0.15 0.1 0.18 0.12 0.19 0.12 0.19 0.12 0.18 0.12 0.18 0.12
Crawler gears (special equipment) 3 0.23 0.15 0.28 0.18 0.28 0.19 0.28 0.19 0.28 0.18 0.27 0.18
Crawler gears (special equipment) 4 0.32 0.21 0.38 0.25 0.39 0.25 0.38 0.25 0.38 0.25 0.37 0.25
Crawler gears (special equipment) 5 0.47 0.31 0.55 0.36 0.57 0.37 0.57 0.37 0.55 0.36 0.55 0.36
Crawler gears (special equipment) 6 0.67 0.44 0.8 0.53 0.82 0.54 0.82 0.54 0.8 0.52 0.80 0.52
Crawler gears (special equipment) 7 1.02 0.67 1.21 0.80 1.24 0.82 1.24 0.82 1.21 0.79 1.21 0.79
Crawler gears (special equipment) 8 1.38 0.91 1.65 1.08 1.69 1.11 1.69 1.11 1.64 1.08 1.64 1.08

Off-road gears.

Model U 200 U 200 U 300 U 300 U 400 U 400 U 500 U 500
Direction Forward Reverse Forward Reverse Forward Reverse Forward Reverse
Off-road gear 1 1.86 1.22 2.22 1.46 2.27 1.49 2.22 1.46
Off-road gear 2 2.69 1.77 3.2 2.11 3.28 2.15 3.2 2.1
Off-road gear 3 4.08 2.68 4.86 3.19 4.97 3.27 4.85 3.18
Off-road gear 4 5.54 3.64 6.61 4.34 6.76 4.44 6.59 4.33
Off-road gear 5 8.15 5.36 9.72 6.39 9.95 6.54 9.69 6.37
Off-road gear 6 11.76 7.72 14.02 9.21 14.35 9.43 13.98 9.18
Off-road gear 7 17.83 11.71 21.26 13.97 21.58 19.43 21.21 13.93
Off-road gear 8 24.24 15.92 28.9 18.99 29.58 19.43 28.82 18.93

* Vmax = 90 km/h
** Only in road-rail mode
Driving speeds may vary with different tyres



Type Details

Your model up close.

Select vehicle type to view technical data:

Model U 219 (2,800 mm)
Model variant 405.090
Wheelbase 2,800 mm
Engine (Euro VIe) OM 934
Output 140 kW/190 hp
Max. Torque at rated engine speed 750 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 4/3 CS 5.1
Rear axle HU 4/3 CS 5.5
Electric 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) 145 l
Tank capacity (AdBlue) 16 l
Steering with max. steering pressure RB 8098/120 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 295/60 R22.5
Largest tyres (tyre/rim) 425/75 R20
Drive type (permanent all-wheel drive) 4 × 4
Pressure Rating Total weight (min/max with corresponding special equipment) 7,49 t / 10.0 t
Max. Weight on front axle 5.2 t
Max. Weight on rear axle 5.5 t
Angle of approach/departure 26° / 37°
Turning circle 12.6 m
Chassis dimensions (length × width × height) 4,775 × 2,200 × 2,855 mm
Interior dimensions of platform (length × width × height) 2,200 × 2,075 × 400 mm
Ground clearance 339 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Model U 319 (3,000 mm)
Model variant 405.104
Wheelbase 3,000 mm
Engine (Euro VIe) OM 934
Output 140 kW/190 hp
Max. torque at rated engine speed 750 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 4/3 CS 5.1
Rear axle HU 4/3 CS 5.5
Electric 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 145 l / 200 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/120 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 295/60 R22.5
Largest tyres (tyre/rim) 425/75 R20
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 11.0 t
Max. Weight on front axle 5.5 t
Max. Weight on rear axle 6.0 t
Angle of approach-departure front/rear 25°/37°
Turning circle 13.7 m
Minimum vehicle dimensions (length × width × height) 4,955 × 2,200 × 2,845 mm
Interior dimensions of tipper platform 2,385 × 2,075 × 400 mm
Ground clearance 330 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 323 (3,000 mm)
Model variant 405.105
Wheelbase 3,000 mm
Engine (Euro VIe) OM 934 LA
Output 170 kW/231 hp
Max. Torque at rated engine speed 900 Nm/1,200–1,600 rpm
Clutch Dry single-disc clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 145 l/200 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.1 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure front/rear 29°/42°
Turning circle 13.7 m
Minimum vehicle dimensions (length × width × height) 4,955 × 2,200 × 2,900 mm
Interior dimensions of tipper platform 2,385 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 323 (3,150 mm)
Model variant 405.105
Wheelbase 3,150 mm
Engine (Euro VIe) OM 934 LA
Output 170 kW/231 hp
Max. Torque at rated engine speed 900 Nm/1,200–1,600 rpm
Clutch Dry single-disc clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 145 l/200 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.1 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure front/rear 29°/42°
Turning circle 14.3 m
Minimum vehicle dimensions (length × width × height) 5,130 × 2,200 × 2,900 mm
Interior dimensions of tipper platform 2,385 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 323 (3,600 mm)
Model variant 405.125
Wheelbase 3,600 mm
Engine (Euro VIe) OM 934 LA
Output 170 kW/231 hp
Max. torque at rated engine speed 900 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.1 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure front/rear 29°/42°
Turning circle 16.6 m
Minimum vehicle dimensions (Length × width × height) 5,555 × 2,200 × 2,900 mm
Interior tipper platform dimensions 2,900 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 327 (3,150 mm)
Model variant 405.110
Wheelbase 3,150 mm
Engine (Euro VIe) OM 936
Output 200 kW/272 hp
Max. torque at rated engine speed 1,100 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.0 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure at large tyres 33°
Turning circle 14.3 m
Minimum vehicle dimensions (Length × width × height) 5,105 × 2,200 × 2,900 mm
Inside dimensions of tipper platform 2,385 × 2,075 × 4,000 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 327 (3,600 mm)
Model variant 405.125
Wheelbase 3,600 mm
Engine (Euro VIe) OM 936
Power output 200 kW/272 hp
Max. torque at rated engine speed 1,100 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 20 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 x 4
Perm. Total weight (max. with corresponding special equipment) 14.0 t
Max. weight on front axle 7.0 t
Max. weight on rear axle 8.0 t
Angle of approach/departure 29° / 42°
Turning circle 16.5 m
Minimum vehicle dimensions (length × width × height) 5,555 × 2,200 × 2,900 mm
Internal dimensions of tipper platform 2,900 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 423 (3,000 mm)
Model variant 405.105
Wheelbase 3,000 mm
Engine (Euro VIe) OM 934
Output 170 kW/231 hp
Speed at max. torque 900/1,200–1,600 rpm
Clutch Dry single-disc clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 145 l/200 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.1 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure front/rear 29°/42°
Turning circle 13.7 m
Minimum vehicle dimensions (length × width × height) 4,980 × 2,200 × 2,900 mm
Interior dimensions of tipper platform 2,385 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 423 (3,150 mm)
Model variant 405.105
Wheelbase 3,150 mm
Engine (Euro VIe) OM 934
Output 170 kW/231 hp
Max. torque at rated engine speed 900 Nm/1,200–1,600 rpm
Clutch Dry single-disc clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 145 l / 200 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.0 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure front/rear 29°/42°
Turning circle 14.3 m
Minimum vehicle dimensions (length × width × height) 5,105 × 2,200 × 2,900 mm
Interior dimensions of tipper platform 2,385 x 2,075 x 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 423 (3,600 mm)
Model variant 405.125
Wheelbase 3,600 mm
Engine (Euro VIe) OM 934
Output 170 kW/231 hp
Max. torque at rated engine speed 900 Nm/1,200–1,600 rpm
Clutch Dry single-disc clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l / 250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.1 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure front/rear 29°/42°
Turning circle 16.5 m
Minimum vehicle dimensions (length × width × height) 5,555 × 2,200 × 2,900 mm
Interior dimensions of tipper platform 2,900 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 427 (3,150 mm)
Model variant 405.110
Wheelbase 3,150 mm
Engine (Euro VIe) OM 936
Output 200 kW/272 hp
Max. Torque at rated engine speed 1,100 Nm/1,200–1,600 rpm
Clutch dry single-disc clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. Steering pressure RB 8098/150 bar
Brakes Pneumatic disc brake
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.0 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure 29°/42°
Turning circle 14.3 m
Minimum vehicle dimensions (Length × width × height) 5,105 × 2,200 × 2,900 mm
Inside dimensions of tipper platform 2,385 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 427 (3,600 mm)
Model variant 405.125
Wheelbase 3,600 mm
Engine (Euro VIe) OM 936
Power output 200 kW/272 hp
Max. torque at rated engine speed 1,100 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 x 4
Perm. Total weight (max. with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.0 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure front/rear 29°/42°
Turning circle 16.5 m
Minimum vehicle dimensions (length × width × height) 5,555 × 2,200 × 2,900 mm
Interior dimensions of tipper platform 2,900 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Model U 430 (3,150 mm)
Model variant 405.110
Wheelbase 3,150 mm
Engine (Euro VIe) OM 936
Output 220 kW/299 hp
Max. torque at rated engine speed 1,200 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 14.0 t
Max. weight on front axle 7.0 t
Max. weight on rear axle 8.0 t
Angle of approach/departure 29° / 42°
Turning circle 14.3 m
Minimum vehicle dimensions (length × width × height) 5,105 × 2,200 × 2,900 mm
Inside dimensions of tipper platform 2,385 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 430 (3,600 mm)
Model variant 405.125
Wheelbase 3,600 mm
Engine (Euro VIe) OM 936
Output 220 kW/299 hp
Max. torque at rated engine speed 1,200 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 14.0 t
Max. weight on front axle 7.0 t
Max. weight on rear axle 8.0 t
Angle of approach/departure 29° / 42°
Turning circle 16.5 m
Minimum vehicle dimensions (length × width × height) 5,555 × 2,200 × 2,900 mm
Interior dimensions of tipper platform 2,900 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Model U 435 (3,150 mm)
Model variant 405.110
Wheelbase 3,150 mm
Engine (Euro VIe) OM 936
Output 260 kW/354 hp
Max. torque at rated engine speed 1,380 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 130 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Max. Pressure Rating Total weight (with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.0 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure 29°/42°
Turning circle 14.3 m
Minimum vehicle dimensions (length × width × height) 5,105 × 2,200 × 2,900 mm
Inside dimensions of tipper platform 2,385 × 2,075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 435 (3,600 mm)
Model variant 405.125
Wheelbase 3,600 mm
Engine (Euro VIe) OM 936
Output 260 kW/354 hp
Max. Torque at rated engine speed 1,380 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 130 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 5/5 CS 7.0
Rear axle HU 5/5 CS 8.0
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/150 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 315/80 R22.5
Largest tyres (tyre/rim) 445/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 14.0 t
Max. Weight on front axle 7.0 t
Max. Weight on rear axle 8.0 t
Angle of approach/departure 29° / 42°
Turning circle 16.5 m
Minimum vehicle dimensions (length × width × height) 5555 × 2200 × 2900 mm
Interior dimensions of tipper platform 2900 × 2075 × 400 mm
Ground clearance 385 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 527 (3,350 mm)
Model variant 405.202
Wheelbase 3,350 mm
Engine (Euro VIe) OM 936
Output 200 kW/272 hp
Max. Torque at rated engine speed 1,100 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 6/1 CS 7.5
Rear axle HU 6/1 CS 9.5
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/170 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 365/85 R20
Largest tyres (tyre/rim) 495/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 16.5 t
Max. Weight on front axle 7.5 t
Max. Weight on rear axle 9.5 t
Angle of approach/departure front/rear 29° / 41°
Turning circle 15.1 m
Minimum vehicle dimensions (length × width × height) 5,305 × 2,300 × 2,900 mm
Interior dimensions of tipper platform 2,650 × 2,200 × 400 mm
Ground clearance 380 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 527 (3,900 mm)
Model variant C 405.222
Wheelbase 3,900 mm
Engine (Euro VIe) OM 936
Power output 200 kW/272 hp
Max. Torque at rated engine speed 1,100 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 6/1 CS 7.5
Rear axle HU 6/1 CS 9.5
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/170 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 365/85 R20
Largest tyres (tyre/rim) 495/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 16.5 t
Max. Weight on front axle 7.5 t
Max. Weight on rear axle 9.5 t
Angle of approach at large Tyres 35°
Turning circle 16.9 m
Minimum vehicle dimensions (length × width × height) 6,015 × 2,300 × 2,900 mm
Internal dimensions of tipper platform 3,430 × 2,200 × 400 mm
Ground clearance 384 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 530 (3,350 mm)
Model variant 405.202
Wheelbase 3,350 mm
Engine (Euro VIe) OM 936
Output 220 kW/299 hp
Max. Torque at rated engine speed 1,200 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 6/1 CS 7.5
Rear axle HU 6/1 CS 9.5
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/170 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 365/85 R20
Largest tyres (tyre/rim) 495/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 16.5 t
Max. Weight on front axle 7.5 t
Max. Weight on rear axle 9.5 t
Angle of approach/departure 29° / 41°
Turning circle 15.1 m
Minimum vehicle dimensions (length × width × height) 5,305 × 2,300 × 2,900 mm
Interior dimensions of tipper platform 2,650 × 2,200 × 400 mm
Ground clearance 380 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 530 (3,900 mm)
Model variant 405.222
Wheelbase 3,900 mm
Engine (Euro VIe) OM 936
Output 220 kW/299 hp
Max. Torque at rated engine speed 1,200 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 100/8 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 6/1 CS 7.5
Rear axle HU 6/1 CS 9.5
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/170 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 365/85 R20
Largest tyres (tyre/rim) 495/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 16.5 t
Max. Weight on front axle 7.5 t
Max. Weight on rear axle 9.5 t
Angle of approach/departure front/rear 29°/ 33°
Turning circle 16.9 m
Minimum vehicle dimensions (length × width × height) 6,015 × 2,300 × 2,900 mm
Interior dimensions of tipper platform 3,430 × 2,200 × 400 mm
Ground clearance 384 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 535 (3,350 mm)
Model variant 405.202
Wheelbase 3,350 mm
Engine (Euro VIe) OM 936
Output 260 kW/354 hp
Max. Torque at rated engine speed 1,380 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 130 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 6/1 CS 7.5
Rear axle HU 6/1 CS 9.5
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/170 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 365/85 R20
Largest tyres (tyre/rim) 495/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 16.5 t
Max. Weight on front axle 7.5 t
Max. Weight on rear axle 9.5 t
Angle of approach/departure front/rear 29° / 41°
Turning circle 15.1 m
Minimum vehicle dimensions (length × width × height) 5,305 × 2,300 × 2,900 mm
Interior dimensions of tipper platform 2,650 × 2,200 × 400 mm
Ground clearance 380 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Type U 535 (3,900 mm)
Model variant 405.222
Wheelbase 3,900 mm
Engine (Euro VIe) OM 936
Output 260 kW/354 hp
Max. Torque at rated engine speed 1,380 Nm/1,200–1,600 rpm
Clutch Single-disc dry clutch. SAE-2 Ø 395 mm, pressed
Transmission UG 130 with integrated transfer case
Axles Steering-guided portal axles with coil springs
Front axle AU 6/1 CS 7.5
Rear axle HU 6/1 CS 9.5
Electrics 24 V
Battery capacity 140 Ah
Tank capacity (fuel tank) (standard/optional) 200 l/250 l
Tank capacity (AdBlue) 25 l
Steering with max. steering pressure RB 8098/170 bar
Brakes Pneumatic disc brakes
Smallest tyres (tyre/rim) 365/85 R20
Largest tyres (tyre/rim) 495/70 R24
Drive type (permanent all-wheel drive) 4 × 4
Perm. Total weight (max. with corresponding special equipment) 16.5 t
Max. Weight on front axle 7.5 t
Max. Weight on rear axle 9.5 t
Angle of approach at large Tyres 35°
Turning circle 16.9 m
Minimum vehicle dimensions (length × width × height) 6,015 × 2,300 × 2,900 mm
Interior dimensions of tipper platform 3,430 × 2,200 × 400 mm
Ground clearance 384 mm
Speed 89 km/h

The vehicle is shown with Euro VIe and in compression condition. Not all equipment shown can be installed together. We reserve the right to make changes and carry out maintenance work.

Equipment

The Unimog has on board.

Equipment

Cab.

Exterior.

The Unimog implement carrier cab offers a high level of safety and ergonomics for daily use.

Series.

  • Panoramic cab, seat position behind front axle
  • Short distance between implement and tractor
  • Cab made of fibre composite, corrosion-free
  • Cab structural integrity in accordance with ECE-R-29/3
  • Comfort suspension, vibration-cushioned
  • Tilting cab,  mechanically and hydraulically height-adjustable
  • Low laminated glass windscreen
  • Low-view windows in doors
  • Large rear panel window
  • Exhaust system: tailpipe points upwards
  • Electric door mirrors, heated and adjustable on both sides
  • Wide-angle mirror, heated
  • Kerb mirror
  • Heat-insulating tinted glass all round
  • Electric windows
  • Top air intake
  • Illuminated, non-slip steps with grab handle
  • 3-level windscreen wiper system fitted above window with intermittent wiping and two stop settings
  • Rain sensor
  • Automatic driving lights

Optional equipment.

  • Heated windscreen
  • Mowing door instead of right door
  • Camera system with front camera, rear view camera and additional camera for attachments
  • Exterior sun visor
  • Locking system, with central locking
  • Immobiliser, with transponder
  • Cab roll-over protection  for EU tractor registration

EU tractor registration.

With a special roll cage and additional adhesive labels, emergency hammer and extended model plate, the Unimog meets the registration requirements of EU Directive 167/2013 for vehicle class T1b. Local authorities, contractors and farmers can register the Unimog in Europe as a tractor unit/agricultural tractor. This brings with it a number of advantages when deploying and using the vehicles.

Panoramic cab

Front camera

Mowing door

Interior.

The interior fittings of the Unimog implement carrier cab are designed down to the last detail, so you cab do your job in comfort, even in adverse conditions.

Series.

  • Multifunction steering wheel
  • Steering column adjustable for height and tilt
  • Air-sprung suspension seat for driver, with tapered backrest, integrated headrest, 3-point seat belt
  • Efficient heating and ventilation system with pollen filter and residual engine heat utilisation
  • Cab floor, level, with cross-cab access
  • Storage compartments and trays
  • Roof console with 2 installation slots (in acc. with DIN) for radio and tachograph
  • 3 individual sun visors
  • Central console with main controls and 2 installation slots
  • Instrument cluster, 10.4 cm diagonal
  • Onboard diagnosis for vehicle status
  • Steering-column lever on right for driving mode
  • Seats adjustable for height, leg-room and tilt, with adjustable backrest and integrated 3-point seat belt
  • Door linings with armrest and bottle holder
  • Interior lights with reading lamps for both driver and co-driver
  • 3 coat hooks
  • Vehicle tool kit
  • Cable ducts, sealed (front and rear)
  • Steering-column switch on left for main-beam headlights and windscreen wipers
  • Air-conditioning system (optional extra for U 219)

Optional equipment.

  • Climate controlled suspension seats for driver and front passenger
  • Heated seats
  • Instrument cluster with 12.4 cm diagonal colour display screen
  • Comfort steering with electromotive power steering
  • VarioPilot® changeable steering system
  • Rotatable mowing seat
  • Two-seater with two full seats, with integrated head supports and 3-point seat belts
  • Auxiliary heater
  • DAB radio with Bluetooth
  • Additional steering column switch on left for operation of transmission

Steering column adjustable for height and tilt

VarioPilot® changeable steering system

Storage compartments in the cab

Equipment

Engine.

The Unimog implement carrier wows with its performance, efficiency and reliable BlueTec diesel engines, which are available in 4- and 6-cylinder variants.

Series.

  • Mercedes-Benz engines with BlueTec diesel technology
  • Diesel direct injection with turbocharger/intercooler
  • Dual regulation (Driving/operating equipment modes)
  • Manual throttle, electronic
  • Hydrostatic fan drive
  • Air compressor 310 l/min
  • Air dryer, heated
  • Air filter, prefilter
  • Cold engine down to -15°C
  • Long maintenance intervals (1400 operating hours)
  • Air intake system, with air filter and prefilter

Exhaust gas after treatment:

  • Diesel particulate filter (Euro VIe only)
  • SCR catalytic converter

Powerful premium engine brake:

  • 2-stage decompression brake
  • Max. braking power: 178 kW (OM 934), 302 kW (OM 936)
  • Operated with steering column control stalk

Optional equipment.

  • Engine pre-heating
  • Fuel preheating
  • Clean-Fix reversible fan
  • Cold climate package (down to -26 °C)

Engine power.

Mercedes-Benz engines: 4-cylinder OM 934 (left) and 6-cylinder OM 936 (right) with Euro VIe-compliant exhaust system

Reversible ventilation
1. Cooling, 2. Switch, 3. Cleaning

Engine data OM 934 (4 cylinder).

Model variant 934.971 934.972
Output in accordance with DIN (kW/hp) 140/190 170/231
Number of cylinders, arrangement 4, vertical in series 4, vertical in series
Working methods 4-stroke diesel direct injection 4-stroke diesel direct injection
Total displacement (cm³) 5,132 5,132
Injection pressure (bar) up to 2,400 up to 2,400
Compression ratio 17.6: 1 17.6: 1
Max. Torque (Nm) at rated speed 750 900
Fan drive Hydrostatic Hydrostatic
Emission standard* Euro VIe Euro VIe

Engine data OM 936 (6-cylinder).

Model variant 936.971 936.971 936.976
Power output in accordance with DIN (kW/hp) 200/272 220/299 260/354
Number of cylinders, arrangement 6, vertical in series 6, vertical in series 6, vertical in series
Working methods 4-stroke diesel direct injection 4-stroke diesel injection 4-stroke diesel direct injection
Total displacement (cm³) 7,698 7,698 7,698
Injection pressure (bar) up to 2,400 up to 2,400 up to 2,400
Compression ratio 17.6:1 17.6:1 17.6:1
Max. torque (Nm) at rated engine speed 1,100 1,200 1,380
Fan drive hydrostatic hydrostatic hydrostatic
Emission standard* Euro VIe Euro VIe Euro VIe

*Depending on the regional approval regulations, the Unimog implement carrier can also be supplied as a Euro V version; this applies exclusively to the U 423, U 429 and U 529 models.



Equipment

Transmissions.

The Unimog implement carrier is a real grafter.  The range of transmission variants is tailored to the wide range of possible applications and different customer requirements. The basic gearbox can be extended to up to 24 forwards and 22 or 24 reverse gears. The permanent all-wheel drive with limited-slip differential has the option of having an added hydrostatic traction drive or a converter-clutch unit. With the truck's synchronised reversing group (EQR), a quick h=change of direction and rocking free are no problem.

Series.

  • Fully synchronised Mercedes-Benz forwards-reverse gear unit with 8 forwards and 6 reverse gears
  • Single-disc dry clutch, self-adjusting
  • Permanent all-wheel drive with lockable longitudinal differential
  • Cruise control/limiter
  • Vmax. limiter 89 km/h
  • Electropneumatic power shift (EPS)
  • EQR (Electronic Quick Reverse)

Optional equipment.

  • EasyDrive hydrostatic traction drive for infinitely variable speeds from  0.1 to 50 km/h
  • AutomaticShift (EAS) automated gearbox (available for U 319 to U 535)
  • Converter-clutch unit (WSK) (available for U 319 and U 423)
  • Working gear, crawler gear and off-road group

The range of transmission variants is as diverse as the Unimog itself. The driving speeds can be precisely, conveniently and flexibly adjusted to suit different working or driving situations.

  • Crawler range: 0.13 km/h – 1.69 km/h
  • Work range: 1.26 km/h – 16.38 km/h
  • Road range: 7.2 km/h – 94.3 km/h
  • Off-road range: Approx. 2.1 km/h – 27.1 km/h

The speeds depend on the selected tyres and the engine speed. The above figures are based on the U 400 with standard 315/80 R22.5 tyres at an engine speed of 2,200 rpm. 89 km/h limit.

EasyDrive (hydrostatic traction drive):

The new hydrostat drive consists of a hydrostat transmission flanged onto the main transmission, hydrostat adjustable pump and a hydrostat adjustable motor. The system allows fully hydrostatic driving up to 50 km/h. The working speed is infinitely adjustable to the respective application at a constant engine and PTO speed. Switchover to manual drive is possible at any time. The increase in output is achieved by increasing the system pressure to 500 bar. For this purpose, special maintenance-free high-pressure pipes were developed.

AutomaticShift (EAS = electronically automated gearshift):

Two drive programmes help reduce the driver's workload: in automatic mode "A", the drive program handles gear changes and clutch operation completely by itself, regardless of load, accelerator position, engine operation, climbs/inclines or engine brake. However, if it becomes necessary for the driver to manually change gear using the multifunction lever, this is also possible. And the "M" drive programme (manual) offers complete control. Here, gear selection is also made using the multifunction lever. The driver chooses the gear, while clutch operation occurs automatically.

AutomaticShift (EAS) with dual-pedal operation (accelerator/brake) is available for the U 435 and U 535 models. The optimised gearshift tuning makes gear changes noticeably quicker and clutch wear and tear significantly reduced. This makes life easier for you, the driver, especially for gearshift-intensive vehicle tasks – so you can concentrate better on the surrounding traffic and on the task at hand.

Torque converter:

The torque converter clutch is designed for an engine power output of up to 170 kW and for a torque of 900 Nm. The converter provides the high start-off torque and the multi-disc clutch performs the shift function, such as for road/rail use. The operation of the lock-up clutch and shift clutch is automatically controlled by the engine management system. For this reason, there is no clutch pedal if the torque converter clutch has been installed.

Equipment

Brakes.

The Unimog implement carrier's powerful brakes guarantee greater safety and comfort – even when working off the beaten track.

Series.

  • Pneumatic high-pressure brake system (13 bar)
  • Pneumatic disc brakes on all four wheels
  • 4-channel off-road ABS, can be switched on for off-road driving
  • Electronic load-dependent brake force control (EBLF control), except for U 219, which comes complete with automatic load-dependent brake force control (ALB)
  • Compressed air connection for auxiliary consumers
  • Compressed air connection with spiral hose and compressed air gun
  • Parking brake with spring-type cylinder
  • Brake pad wear indicator

Optional equipment.

  • All-wheel parking brake
  • Trailer brake system, 2-line

Equipment

Steering.

In addition to hydraulic power steering, all-wheel power steering can also be used for special tasks.

Series.

  • Hydraulic Power Steering
  • Steering column height and angle adjustable
  • Multifunction steering wheel

Optional equipment.

  • All-wheel steering (available for U 423 to U 535)
  • Right-hand drive
  • Comfort steering with electromotive power steering
  • VarioPilot® changeable steering system

Equipment

Wheels and axles.

The Unimog implement carrier's dimensionally stable ladder-type frame, together with the portal axles, makes it an all-rounder perfect for off-road use.

Series.

  • Continuous ladder frame, dimensionally stable
  • Towing attachment with locking pins at the front
  • Integrated support for fitting front mounting plate
  • Implement and body-mounting points integrated in the frame
  • Coil springs with progressive load recognition
  • Stabilisers at front and rear
  • Telescopic shock absorbers
  • Portal axles
  • 3 axles, link-located
  • Differential lock on front and rear axle
  • Chassis preservation, Dinol
  • All locks engageable and disengageable electropneumatically via dog clutch while on the move (100% locking effect)

Optional equipment.

  • Front mounting plate
  • Three-sided tipper bed
  • Frame attachment mounting, central, rear and between the axles
  • Tyre pressure control system TireControl plus (except U 219)
  • Hydropneumatic axle suspension for 400 and 500 models

The differential locks are activated intuitively using the central dial.

Portal axles with final reduction gear: great ground clearance but at the same time a low vehicle centre of gravity as axle tube and differential are located above the centre of the wheel and the differential is not in the centre of the axle.

The hydropneumatic suspension combines active and passive functions. When the engine is switched on, optimum stability of the vehicle and a fixed frame height are guaranteed, regardless of the load and load distribution. This significantly increases driving comfort, especially when one-sided loads are applied and when driving around corners.

Equipment

Tyres.

Depending on the area of application, the Unimog implement carrier can be equipped with a variety of tyres. The optional TireControl plus central tyre inflation system enables the driver to flexibly adjust the pressure of the tyres to suit the surrounding conditions.

Tyre specifications.

Type U 219 U 319 U 423 – U 435 U 527 – U 535
Axle ratio 6.53 6.53 6.38 6.38
Standard tyres (other tyre options available on request) 295/60 R22.5 315/80 R 22.5 315/80 R22.5 385/65 R22.5
Smallest tyres (tyre/rim) 295/60 R22.5 295/60 R22.5 315/80 R22.5 365/85 R20
Largest tyres (tyre/rim) 425/75 R20 425/75 R20 445/70 R24 495/70 R24

TireControl plus.

With its "TireControl plus" tyre pressure control system for fast switching between on- and off-road driving, when it comes to off-road use, this Unimog is an absolute must. The TireControl plus system also makes it particularly soil-friendly during agricultural use and gives it better traction on difficult terrain, as well as fast progress on paved roads.

Equipment

Electrics.

The Unimog implement carrier has a powerful 24 V on-board electrical system, which can be extended with additional sockets as well as a range of lighting options.

Series.

  • Vehicle power supply 24 V
  • Electronics compartment protected in cab, with socket for diagnostics
  • Socket with permanent power supply 24 V/15 A
  • CAN bus network
  • Trailer socket, rear, 15-pin /24 V
  • Battery 140 Ah
  • Electronic vehicle management system
  • EMC-tested
  • Generator 28 V/150 A
  • Daytime running lights protected in bumper
  • Headlight range adjustment
  • Rear fog lamp
  • Reversing lamps
  • End-outline marker lamps
  • Entrance lights for steps to cab

Optional equipment.

  • 12V/15A continuous current socket with C3 signal
  • 24 V/25 A vehicle socket with C3 signal
  • 24 V/40 A equipment socket, 32-pin, C3/C4
  • LED work lamp directed to the rear
  • Additional LED headlamps, mounted higher for front attachments
  • Rotating LED beacon
  • Bi-xenon headlamps, LED daytime running lights
  • Headlamp cleaning system
  • Roof-mounted bar with LED main-beam headlamps
  • Additional LED main-beam headlamps, with roof-mounted bar
  • Universal electric interface, in accordance with EN 16330

Bi-xenon headlamps

Equipment socket, 32-pin

Equipment

Machine drive.

Hydraulics.

The Unimog implement carrier has the option of being equipped with a working and municipal hydraulics system specialising in many areas of application.

Optional equipment.

  • Working/municipal hydraulics in line with EN 15431 for adjustment movements and permanent consumers (delivery in hydraulic packages)
  • Control of circuit I via 2 to 4 dual-action valves with float position
  • Snow plough relief
  • Oil reservoir: 45 l
  • Extraction quantity: 30 l

Working hydraulics

Tilting hydraulics

Hydraulic packages.

  • Hydraulics for tilting mechanism and additional consumers with 20 l/min, 185 bar
  • One circuit hydraulic system with 55 l/min flow rate and 200 bar working pressure
  • Two circuit hydraulic system with proportional control: circuit I/II with 32/55 l/min flow rate and 200/240 bar working pressure
  • Load sensing hydraulic with 110 l/min, 240 bar
  • Power hydraulics circuit III/IV: 125 l/min each, 280 bar (available for U 319 to U 535)

Hydraulic interfaces

Load-sensing hydraulics

Power hydraulics

Power take-off.

As well as the working hydraulics, engine power take-offs like a powerful front power take-off shaft are available as optional equipment.

Optional equipment.

  • Front PTO shaft: 160 kW
  • Engine PTO: i = 0.933
  • Transmission PTO: fast, with 4-hole connection, i = 1.0
  • Gearbox PTO: very fast, with flange, i = 0.61

Front PTO

Equipment packages

Perfectly equipped to suit your needs.

The standard Unimog implement carrier has a lot to offer, equipping you as well as possible for the job at hand. What's more, there are many other options to help you customise your Unimog to suit your individual needs.

These three attractive equipment packages offer significant savings.
